CO₂ fire suppression systems, designed and installed in Lebanon.
The usual answer for machinery spaces, switchgear and generator halls: a heavy hazard in a room that is normally empty. Designed to NFPA 12, with the full safety chain that standard requires.
What CO₂ is.
A CO₂ system floods a hazard with carbon dioxide, under NFPA 12. The agent is stored either in high-pressure cylinders at roughly 850 psi at room temperature, or in a refrigerated low-pressure tank at roughly 300 psi held near -18 °C. Cylinder banks suit modular, targeted protection; a low-pressure tank suits a large or multi-hazard site where one bulk supply feeds several selector valves.
Carbon dioxide suppresses by displacing oxygen and cooling the fuel. Total flooding fills a sealed enclosure to a design concentration, typically at least 34% and higher for some hazards. Local application instead discharges directly onto a specific hazard, which is how you protect an open machine, a quench tank or a print unit that could never be enclosed.
What a complete CO₂ system consists of.
Every part below does a job. Leave one out and the rest of it will not behave the way the calculation says it should.
-
Cylinder bank or bulk tank
High-pressure cylinders manifolded together, or a refrigerated low-pressure tank for larger sites.
-
Master and slave cylinders
The master fires on command and drives the rest of the bank through the pilot line.
-
Manifold and check valves
Combine the bank into one discharge and stop backflow into any cylinder that has already emptied.
-
Pilot line
Carries the actuation signal from the master cylinder to the slaves, pneumatically.
-
Selector valves
Direct the supply to whichever hazard called for it, on a multi-hazard system.
-
Pipe network
Sized by flow calculation for the hazard and the application method.
-
Discharge nozzles
Total flooding nozzles for enclosures, or local application nozzles aimed at the hazard itself.
-
Releasing control panel
Monitors detection, runs the pre-discharge sequence and fires the bank.
-
Detection
Heat, smoke or flame detection appropriate to the hazard, cross-zoned where required.
-
Manual release station
Deliberate release, sited at the exit from the hazard.
-
Pneumatic time delay
Holds the discharge back long enough for the space to be cleared. Required by NFPA 12.
-
Lock-out valve
Physically isolates the system while people are working inside the hazard. Required by NFPA 12.
-
Odouriser
Gives the discharge a detectable smell, because CO₂ has none of its own.
-
Pneumatic pre-discharge alarm
Sounds on the agent's own pressure, so it works even if power is gone.
-
Horn, strobe and warning signage
At every entry, and inside the hazard.
-
Door closers and damper interlocks
Seal the enclosure so the concentration holds.
The numbers.
| Agent | Carbon dioxide |
|---|---|
| Standard | NFPA 12, Carbon Dioxide Extinguishing Systems |
| High-pressure storage | Cylinders at approximately 850 psi at room temperature |
| Low-pressure storage | Refrigerated bulk tank at approximately 300 psi, held near -18 °C |
| Application | Total flooding, or local application onto a specific hazard |
| Design concentration | At least 34% for total flooding, higher for some hazards |
| Residue | None |
| Electrical | Non-conductive |
| Occupancy | Normally unoccupied hazards. CO₂ is an asphyxiant |
| Approvals | UL-listed and FM-approved components |
The rooms this protects.
Switchgear and transformer rooms
Energised equipment in a room nobody normally occupies.

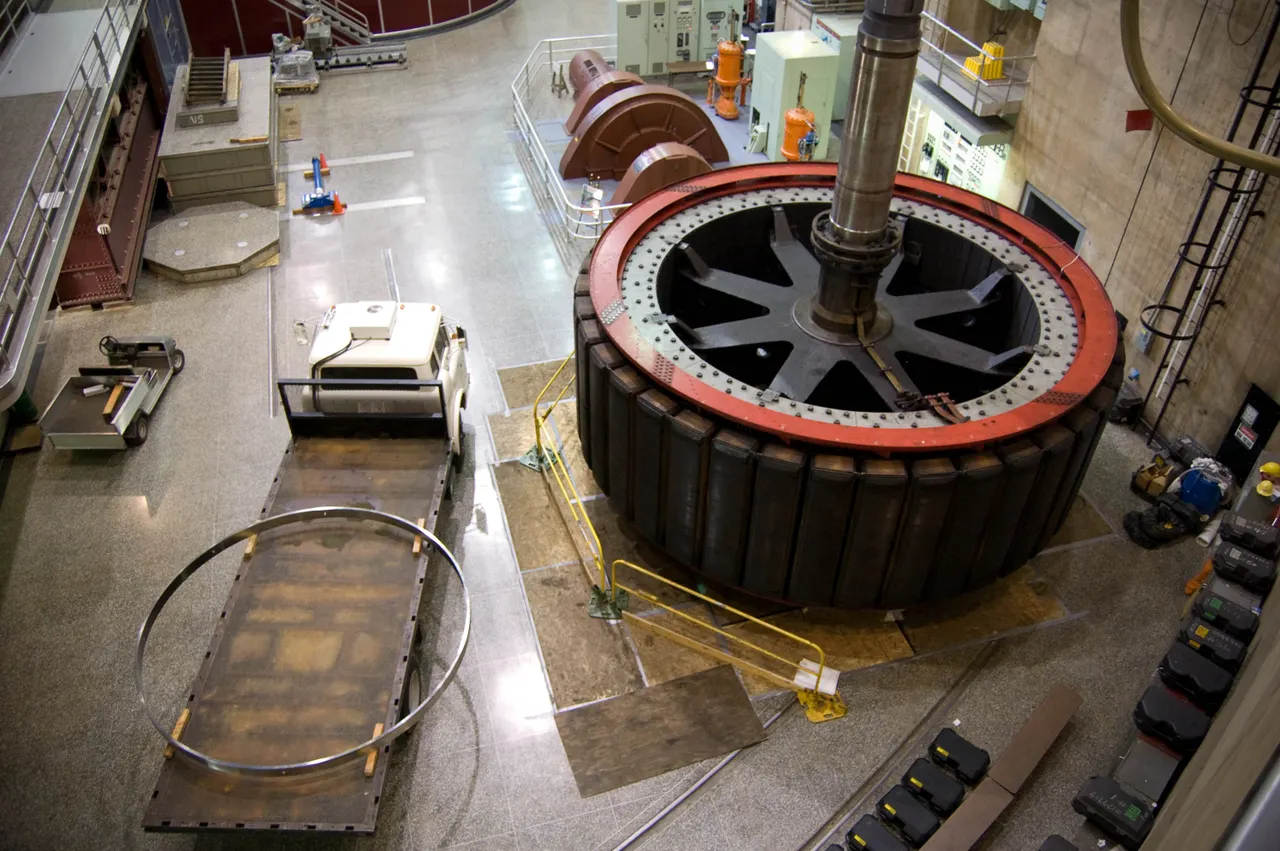

Generator halls
Fuel, heat and rotating machinery, in a space that is empty while running.
Paint spray booths
Flammable solvent vapour, protected by local application onto the hazard.
Dust collectors
Combustible dust in a confined volume, where an enclosed total flood works well.
Printing presses
Ink and solvent on a moving machine that cannot be boxed in.
Marine engine rooms
The classic CO₂ hazard: heavy machinery, confined space, evacuated before release.
Built to NFPA 12, from listed components.
We design to NFPA 12 and build from UL-listed and FM-approved components. The two listings answer different questions: UL tests to published safety standards, FM Approvals tests for property-loss performance. Between them they cover both, which is why we specify parts that carry both marks.
Every system is handed over with the flow calculation, the as-built drawings and the commissioning record. Without those three documents there is no way to show the system was ever designed for the room it sits in, which becomes a problem at insurance renewal and again when someone else takes over maintaining it.
What people ask about CO₂.
What does a CO₂ fire suppression system consist of?
A cylinder bank or bulk tank, master and slave cylinders, a manifold with check valves, a pilot line, selector valves on multi-hazard systems, a calculated pipe network, discharge nozzles, a releasing control panel, detection, a manual release station, a pneumatic time delay, a lock-out valve, an odouriser, pneumatic pre-discharge alarms, horn, strobe and signage, and door closers or damper interlocks.
Is CO₂ safe for occupied rooms?
No, and that is the single most important thing to understand about it. CO₂ works by displacing the oxygen people breathe. It is intended for normally unoccupied hazards, and where a total flooding system protects a space that is sometimes occupied, NFPA 12 requires lock-out valves, pneumatic pre-discharge alarms and pneumatic time delays before it can be used at all.
What is the difference between total flooding and local application?
Total flooding fills a sealed enclosure to a design concentration and holds it there, so it needs a room that can actually be sealed. Local application discharges straight onto the hazard itself, which is the option left when the hazard cannot be enclosed at all.
High-pressure cylinders or a low-pressure tank?
High-pressure cylinders store CO₂ at around 850 psi at room temperature and suit modular, targeted protection of one or a few hazards. A refrigerated low-pressure tank holds a much larger bulk charge at around 300 psi and makes sense on a large site where several hazards draw from one supply through selector valves.
What does NFPA 12 require for safety?
For total flooding in normally occupied enclosures: lock-out valves, pneumatic pre-discharge alarms and pneumatic time delays. Beyond that, warning signage in conspicuous locations, odourisation of the discharge, alarms at every entrance that operate on detection, door closing devices, a delay long enough to evacuate, and consideration of CO₂ drifting into adjacent and lower spaces.
Why is CO₂ still used when clean agents exist?
Cost and capacity. For a large machinery space or a heavy industrial hazard, CO₂ delivers a great deal of suppression for the money, and the agent itself is cheap and universally available to recharge. Where the room is unoccupied and the hazard is heavy, it usually still wins on cost.
How much does a CO₂ system cost in Lebanon?
It scales with the volume being protected and the number of hazards drawing from the bank, so it varies widely. Tell us what the space is and what is in it, and we will come and measure before pricing it.
How often does a CO₂ system need servicing?
Cylinders are weighed on a scheduled interval to confirm the charge, hoses and discharge components are inspected, and the detection, alarm, time delay and lock-out functions are all tested. The safety chain is the part most likely to have been disturbed since the last visit, so it gets tested every time.
